AVW-401R | IDEC | Push-Button Switch

Estimated Lead Time : 1-10 working days

Manufacturer : IDEC

Part Number : AVW-401R

Push-Button Switch

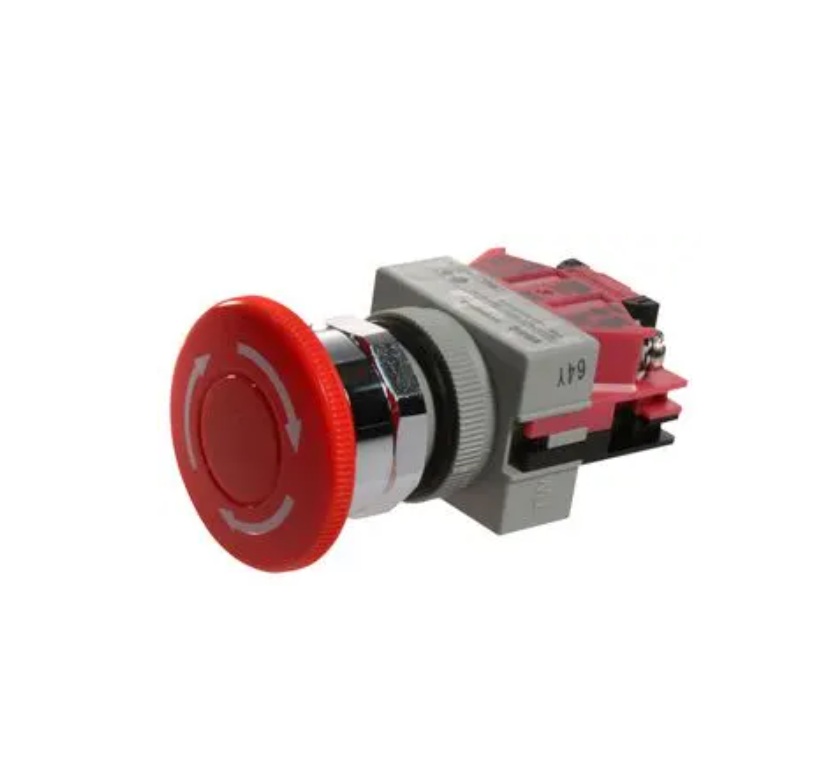

The IDEC AVW-401R also cataloged as AVW401-R is an industrial 22 mm emergency stop / push-lock mushroom switch from IDEC's heavy-duty TW Series.

 Modular Snap-On Design: Easy installation and maintenance with stackable contact blocks for additional NO/NC circuits.

Latching Safety Mechanism: Push-to-lock action securely maintains the open circuit until manually rotated clockwise to reset.

Rugged Construction: Corrosion-resistant chrome-plated locking bezel engineered for demanding industrial control panels and automation machinery.

Manufacturer : IDEC Corporation

Part Number : AVW-401R / AVW401-R

Product Series : TW Series (Heavy Duty / Metal Bezel)

Mounting Hole Cutout : 22 mm

Actuator Type : 40 mm Mushroom Head (Push-Lock, Turn-to-Reset)

Button Color : Red

Illumination : Non-Illuminated

Contact Configuration : 1NC (Normally Closed)

Contact Current Rating : 10 A

Rated Insulation Voltage : 600 V AC / DC

Terminal Type : M3.5 Screw Terminals

Bezel / Ring : Octagonal Chrome-Plated Metal Ring

Protection Degree : IP65 (Watertight / Oil-tight), NEMA 4X

Certifications : UL Listed, CSA Certified, TÜV Approved, CE Marked

Shipping Weight : 2 Kg
