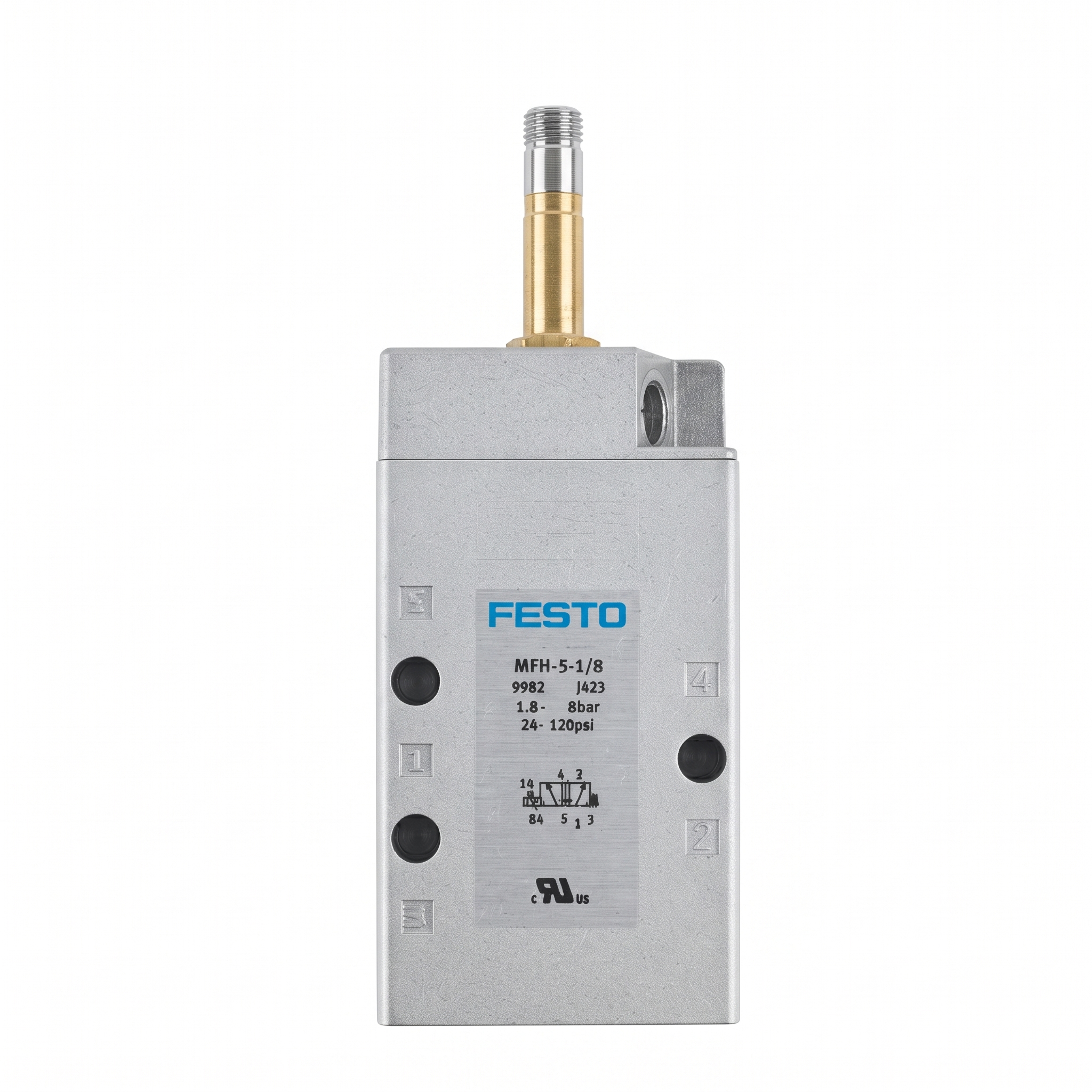

MFH-5-1/8 (9982) | Festo | Solenoid valve MFH-5-1/8

Estimated Lead Time : 1-10 Working days

Manufacturer : Festo

Part Number (Order Code) : 9982

Type name : MFH-5-1/8

Tiger Classic Series | Monostable 5/2-Way Pneumatic Solenoid Valve

Series Type : Tiger Classic (MFH)

Valve Function : 5/2-way, Monostable

Type of Actuation : Electrical (Pilot-actuated)

Reset Mechanism : Mechanical Spring

Pneumatic Ports (1, 2, 3, 4, 5) : G 1/8

Nominal Size / Orifice : 5.0 mm

Standard Nominal Flow Rate (qnN) : 500 l/min

Operating Pressure : 1.8 bar – 8 bar (approx. 0.18 – 0.8 MPa)

Operating Medium : Compressed air to ISO 8573-1:2010

Switching Time (On / Off) : 8 ms / 36 ms

Ambient Temperature Range : -5 °C to +40 °C

Medium Temperature Range : -10 °C to +60 °C

Housing Material : Die-cast Aluminium

Seal Material : NBR (Nitrile Butadiene Rubber)

Product Weight : Approx. 240 g

Coil Requirement: Solenoid valve body is delivered without a coil. Compatible with Festo F-series coils (e.g., MSFG-24/42-50/60 for 24 V DC / 42 V AC, or MSFW-230-50/60 for 230 V AC).

Mounting: Suitable for inline installation via through-holes or manifold mounting on PRS manifold rails.

Manual Override: Features a detenting / non-detenting manual override for easy commissioning and maintenance.

Shipping Weight : 2 Kg
