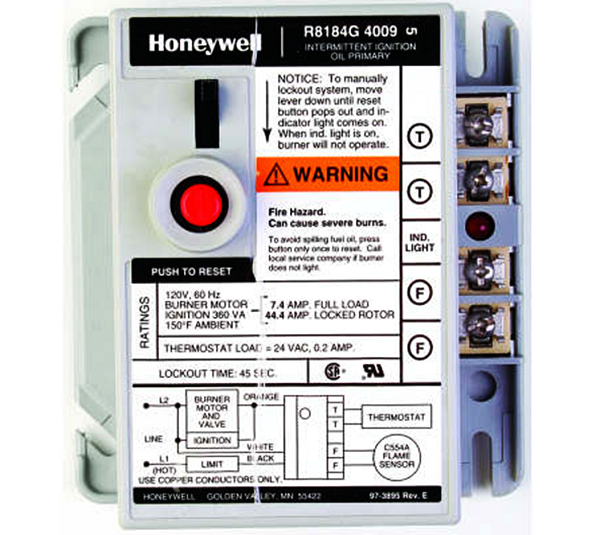

R8184G1328/B | Honeywell | PROTECTORELAY 220V,50HZ 240V,60HZ

Estimated Lead Time : 1 - 10 Working Days

Manufacturer: Honeywell

Part Number : R8184G1328/B

PROTECTORELAY 220V,50HZ 240V,60HZ, .2A THERMOSTT SAFETY SWITCH TIME 15 SECONDS. INTERMT IGN STD 4X4 BOX OR BURNER M USE C554 BULK

R8184G1328/B

Protectorelay® Oil Burner Control with 15 second safety timing

Provides automatic, nonrecycling control of an intermittent ignition oil burner system.

Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.

Solid state flame sensing circuit.

LED on terminal strip indicates system lockout (available on some models).

Remote lockout indication (available on some models).

Enclosed safety switch with external reset button.

Manual trip lever opens safety switch for system maintenance.

Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.

C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required..

Dimensions (in.) : 4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep

Dimensions (mm) : 111 mm high x 104 mm wide x 64 mm deep

Temperature Range (F) : -40 F to +130 F

Temperature Range (C) : -40 C to +54 C

Item Type : Product

Mounting : For mounting on a standard 4 X 4 in. junction box or direct mounting to on burner hsg.

Approvals, Underwriters Laboratories Inc. : UL Component Recognized; File no. MP268, Vol. 35 Sec. 1,3

Approvals, CSA : CSA Certified; File no. LR95329-1

Electrical Connections : #8 Screw terms

Ignition Type : Intermittent

Timing, Safety Switch : 15 sec.

Electrical Ratings, Contacts (full load) : 7.4 A @ 120 Vac; 3.7 a @ 240 Vac

Electrical Ratings, Contacts (locked rotor) : 44.4 A @ 120 Vac; 22.2 A @ 240 Vac

Shipping Weight : 2 Kg
