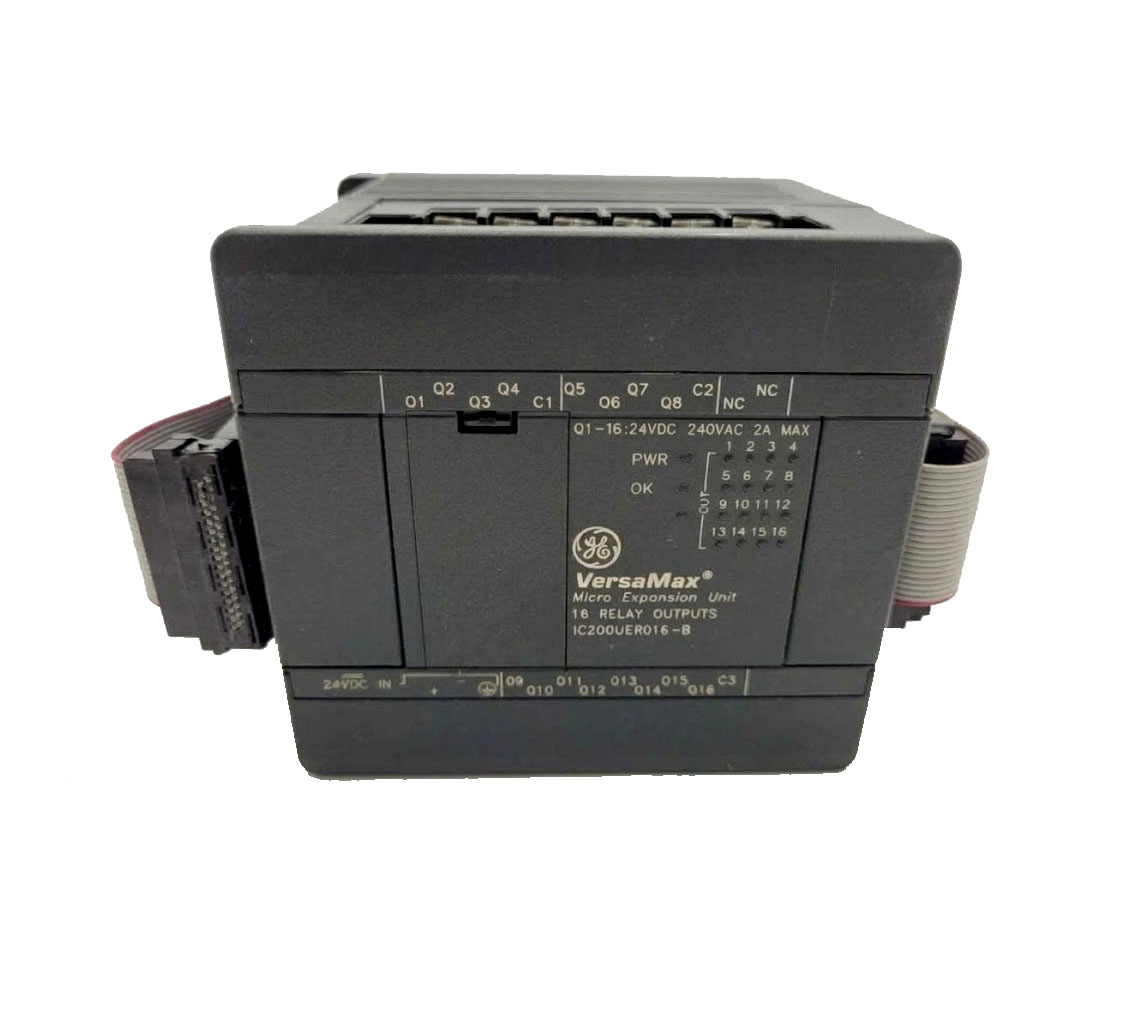

IC200UER016-B | GE Fanuc | VersaMax Micro Expansion 16 Output Relay Module

Estimated Lead Time : 1-10 Working days

Manufacturer :  GE Fanuc

Part Number : IC200UER016-B

The IC200UER016-B is a revision B discrete expansion module from the GE Fanuc / Emerson VersaMax Micro PLC family. It provides 16 electromechanical relay outputs designed for switching AC or DC field loads.

Output Type : Electromechanical Relay (Normally Open, Form A)

Number of Points : 16 Relay Outputs

Power Supply Voltage : 24 V DC

Power Consumption : Approx. 4 W

Contact Load Rating : 2.0 A at 240 V AC / 24 V DC (Resistive)

Isolation Voltage : 1500 V RMS (field to logic), 500 V RMS between groups

Sensor Power Output : 200 mA at 24 V DC

Weight : Approx. 0.37 kg (0.81 lbs)

Mounting Type : 35 mm DIN Rail or Direct Panel Mount

System Scalability : Supports up to 4 expansion units chained per VersaMax Micro controller.

Interconnect Cable : Connects via standard expansion I/O cables (IC200CBL5xx series).

Channel Status LEDs : Real-time front-panel logic indicators for each relay output and power status.

Revision Compatibility : Revision B provides updated internal components while maintaining full hardware and logical backward compatibility with Revision A.

Shipping Weight : 2 Kg
