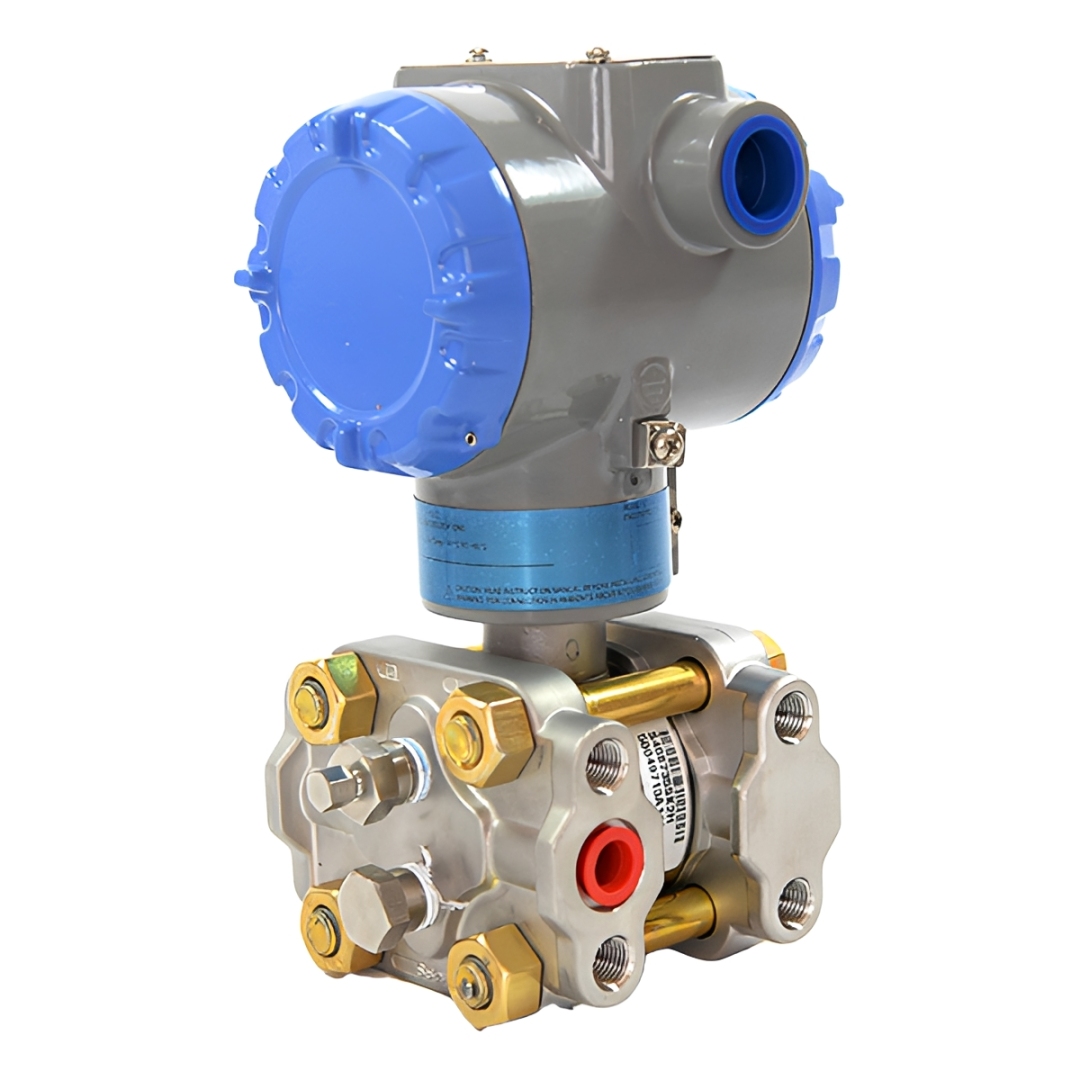

STG745-E1G000-1-G-AHS-11S-A-10A7-F1,F5,FX-0000 | Honeywell | STG700 Gauge Pressure Transmitters

Estimated Lead Time : 1 - 10 Working Days

Manufacturer : Honeywell

Part Number : STG745-E1G000-1-G-AHS-11S-A-10A7-F1,F5,FX-0000

STG700 Gauge Pressure Transmitters

KEY NUMBER : STG745 = Gauge Dual Head

Process Head & Diaphragm Materials : E = 316 Stainless Steel | 316L SS

Fill Fluid : 1 = Silicone Oil 200

Process Connection : G = Size/Type: 1/2" NPT (female) | Material: Same as Process Head

Bolt/Nuts Materials : 0 = None

Vent/Drain Type/Location : 0 = None

Gasket Materials : 0 = None

Head/Connect Orientation : 1 = Standard | High Side Left, Ref Side Right² / Std Head Orientation

Approvals : G = NEPSI Explosion proof, Intrinsically Safe & Non-incendive

Electronic Housing Material & Connection Type : A

• Material : Polyester Powder Coated Aluminum

• Connection : 1/2 NPT

• Lightning Protection : None

Output/ Protocol : H = Analog Output: 4-20mA dc | Digital Protocol: HART Protocol

Customer Interface Selections : S

• Indicator : Standard(w/Internal Zero,Span&Config buttons)

• Ext Zero,Span & Config Buttons : None

• Languages : EN, RU

Application Software : 1 = Standard Diagnostics

Output Limit, Failsafe & Write Protect Settings : 1

• Write Protect : Disabled

• Fail Mode : High> 21.0mAdc

• High & Low Output Limits³ : Honeywell Std (3.8 - 20.8 mAdc)

General Configuration : S = Factory Standard

Accuracy and Calibration : A

• Accuracy : Standard

• Calibrated Range : Factory Standard

• Calibration Qty : Single Calibration

Mounting Bracket : 1 = Bracket Type: Angle Bracket | Material: Carbon Steel

Customer Tag : 0 = No customer tag

Unassembled Conduit Plugs & Adapters : A7 = M20 316 SS Certified Conduit Plug

Certifications & Warranty : F1,F5,FX

• F1 = Calibration Test Report & Certificate of Conformance

• F5 = Certificate of Origin

• FX = EN10204 Type 3.1 Material Traceability

Factory : 0000 = Factory Identification

Weight : 8.3 pounds (3.8 Kg)

Shipping Weight : 5 Kg
